Taurus UL
Three watertight chambers level regulator with freely suspended trim variation. Unlike traditional floats that floats on the water surface, the TAURUS thanks to its special construction with integrated counterweight, remains underwater.
PATENTED PRODUCT
Applications:
DRAINAGE PLANTS
PUMPING STATIONS
WASTE WATERSDownload:
Principle of Operation
Used in couple with another of the same type allows you to adjust the levels of minimum and maximum

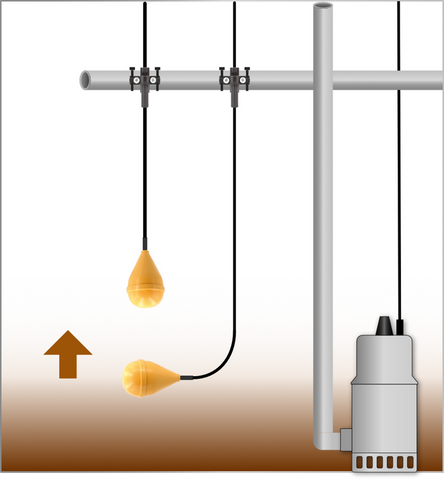

The tank fills

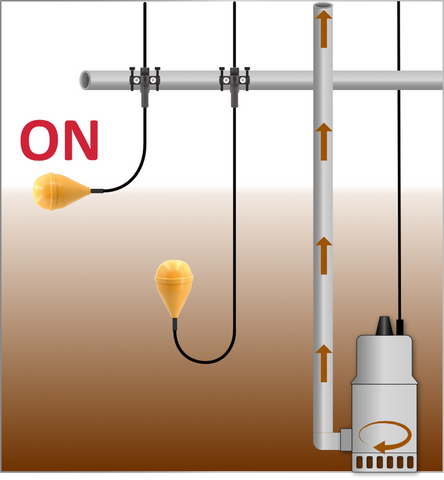

High level starts the pump

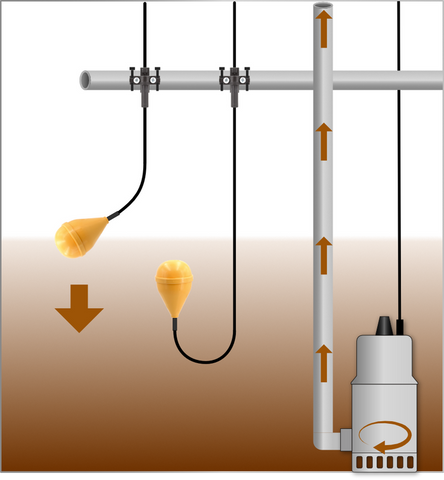

The tank drains

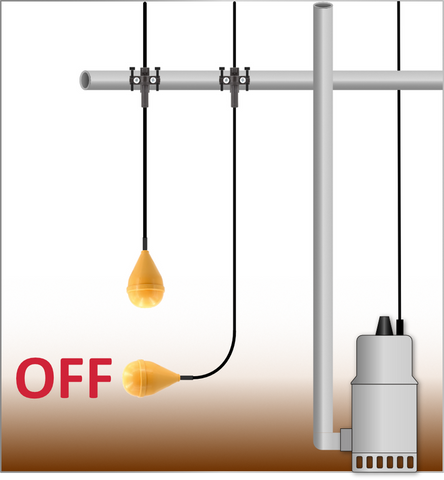

Low level stops the pump

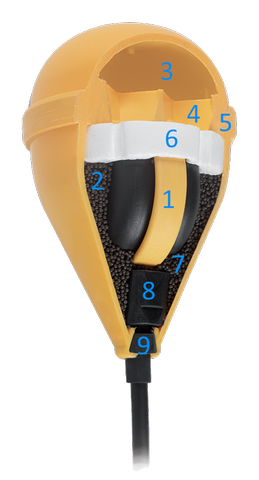

A Float Inside Another Float
- First watertight chamber
- Second watertight chamber
- Third watertight chamber
- Spherical plastic seal: it augments the structural resistance of the float and weighs on the expanded polystyrene crown cap beneath creating the third watertight chamber
- Final thermoplastic sealing: it fuses the various plastic parts together into one single piece.
- Expanded polystyrene crown cap: it compresses the metallic grit
- Metallic grit
- Cable gland
- Rubber grommet: tested at 5 bar
Examples of Applications

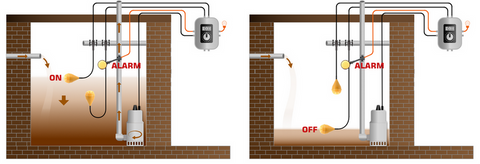

SPST-NO / SPDT-NO
Single Function - Normally Open: Emptying
/ Double Function - Normally Open: Emptying
/ Double Function - Normally Open: Emptying

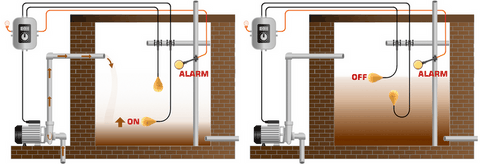

SPDT-NC
Double Function - Normally Closed: Filling
Technical Datas
Specific Gravity: 0,95 - 1,05 kg/dm³
Casing: PolypropyleneInternational Protection: IP68
MODEL | CABLE TYPE | LENGHT (ft) | POWER SUPPLY | TEMPERATURE | DEPTH | ACTIVATION ANGLE |
|---|---|---|---|---|---|---|
TAURUS A-00-SPST | SJOW 3AWG16 | 10 / 20 / 30 | 250V 10A / 250V 1-½HP / 125V ½HP | max.+50°C (+122°F) | max.20m (65,6ft) | 20°±5° |
TAURUS A-01-SPST | SJOW 3AWG14 | 10 / 20 / 30 | 250V 14A / 250V 2HP / 125V ¾HP | max.+50°C (+122°F) | max.20m (65,6ft) | 20°±5° |
TAURUS A-00-SPDT | SJOW 3AWG16 | 10 / 20 / 30 | 250V 10A / 250V 1HP / 125V ⅓HP | max.+50°C (+122°F) | max.20m (65,6ft) | 20°±5° |
TAURUS A-04-SPST | SJOW 2AWG14 | 10 / 20 / 30 | 250V 14A / 250V 2HP / 125V ¾HP | max.+50°C (+122°F) | max.20m (65,6ft) | 20°±5° |
Accessories
Cable holders
(* May not be included)

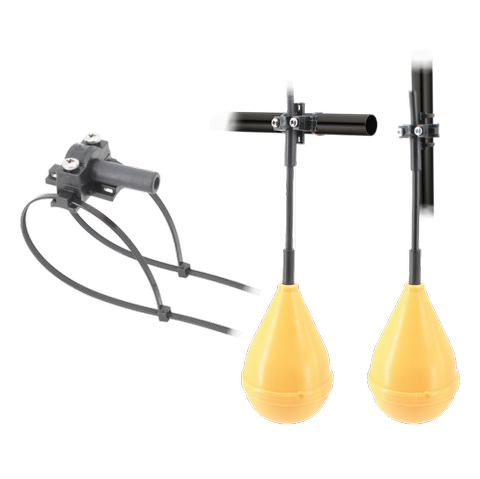

Starfish
vertical or horizontal tube fixing

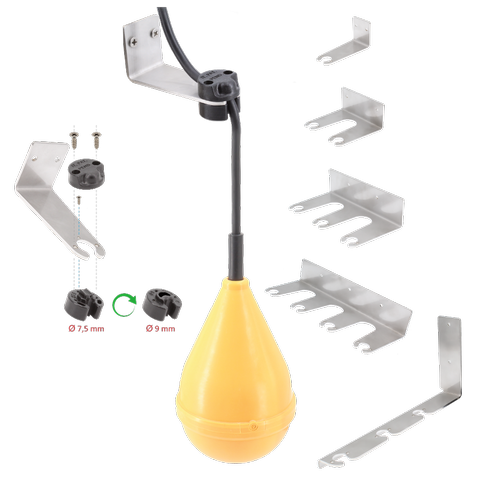

Koala
wall fixing with Stainless Steel AISI 316 brackets
