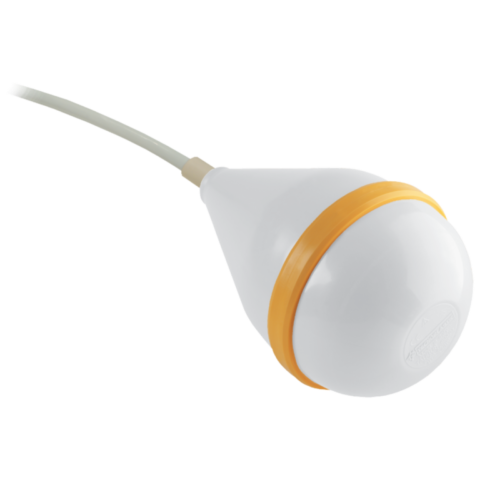

Flotec-Fep Float Switch

Flotec-Fep

Triple chamber float switch for extreme applications.
Suitable for immersion in hydrocarbons, medical and scientific
facilities, water purification plants, air conditioning plants.

Applications:
 DRAINAGE PLANTS
 PUMPING STATIONS
WASTE WATERS

Download:



Principle of Operation

The tank fills

High level starts the pump

The tank drains

Low level stops the pump

Examples of Applications

SPST-NO / SPDT-NO

Single Function - Normally Open: Emptying
/ Double Function - Normally Open: Emptying

SPDT-NC

Double Function - Normally Closed: Filling

Technical Datas

Casing: Polypropylene
Grommet: Viton
International Protection: IP68
MODEL
NEOPRENE CABLE TYPE
LENGHT (m)
AMP - VOLT - T°C
DEPTH
ACTIVATION ANGLENOTE
FLOTEC FEP
FEP 4G0.75 SPDT  - Ø 8,8mm
10 / 20
10(8)A 250Vac T80
0,1A 12/24V T60
max.20m (65,6ft)
90°±20°
for pumps till 1,5HP

Accessories

Cable holders

(* May not be included)

Double Shell Counterweight - 230+230g*

It allows the float switch to work always with the same cable length even in turbolent waters avoiding damages to the cable.

Starfish

vertical or horizontal tube fixing
