![](_media/img/small/fox-g06-2.png)

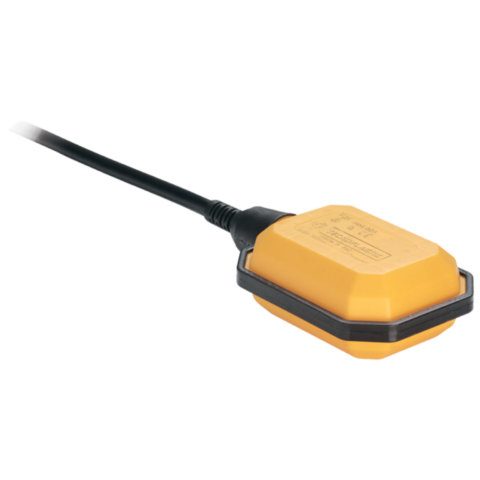

Fox-G06
Suitable for water pumps and professional plumbing systems automation.
Applications:
![](_media/img/sq_icon/alta-temperatura.png)
Download:
Principle of Operation
![](_media/img/small/diapositiva1-3-3.jpg)
The tank fills
![](_media/img/small/diapositiva2-3-3.jpg)
High level starts the pump
![](_media/img/small/diapositiva3-2-4.jpg)
The tank drains
![](_media/img/small/diapositiva4-4.jpg)
Low level stops the pump
Examples of Applications
SPST-NO
![](_media/img/small/svuotamento.jpg)
Single Function - Normally Open: Emptying
Technical Datas
Casing: Polypropylene
International Protection: IP68
MODEL | NEOPRENE CABLE TYPE | LENGHT (m) | AMP - VOLT - T°C | DEPTH | ACTIVATION ANGLE | NOTE |
---|---|---|---|---|---|---|
FOX-G06 | H07 RN8-F 3G1 SPST-NO - Ø 8,8mm | 0,52 / 5 / 10 | 10(10)A 250Vac T70 | max.10m (32,8ft) | 90°±20° | for pumps till 2HP |
Accessories
Cable holders
(* May not be included)
bamboo
Tt is ideal for applications in turbulent waters as it prevents the entanglement of the cable, so the float switch can work properly
![](_media/img/small/bamboo-fox.png)
Shell Counterweight 230g*
It allows the float switch to work always with the same cable length even in turbolent waters avoiding damages to the cable.
![](_media/img/small/shell.png)
Schuko Piggyback Plug*
The schuko piggyback plug provided with the float switch allows to connect a pump without a switch directly to an electrical socket as to controll the start and stop function.
![](_media/img/small/schuko-piggyback-plug.png)
