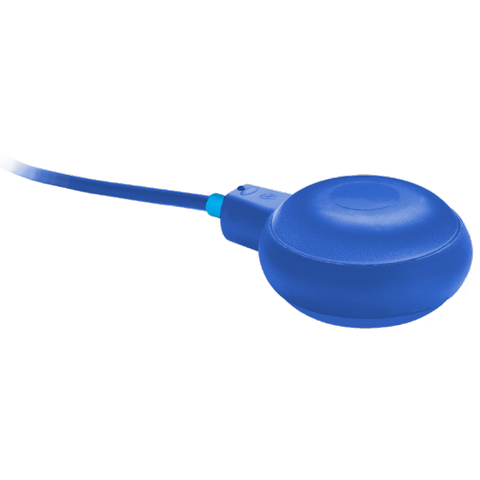

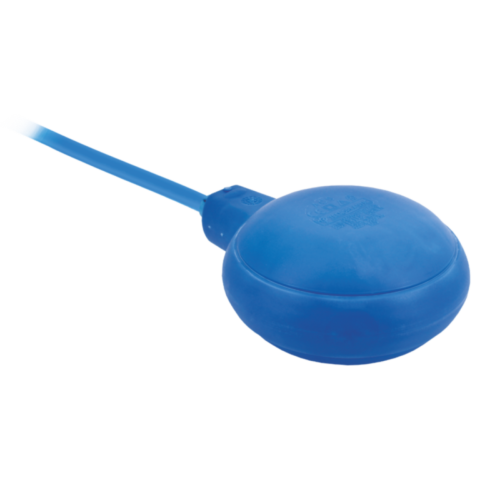

Supertec-Drink
Double chamber float switch resistant to high pressures. A greater buoyancy and the reduced dimensions guarantee high performances. Totally manufactured with non-toxic material intended for permanent usage in potable water.
Applications:
![](_media/img/sq_icon/acquapulita-2.png)
![](_media/img/sq_icon/acquapotabile.png)
![](_media/img/sq_icon/pesce.png)
![](_media/img/sq_icon/piscina.png)
Download:
Principle of Operation
![](_media/img/small/diapositiva1-3-4.jpg)
The tank fills
![](_media/img/small/diapositiva2-3-4.jpg)
High level starts the pump
![](_media/img/small/diapositiva3-2-5.jpg)
The tank drains
![](_media/img/small/diapositiva4-5.jpg)
Low level stops the pump
Examples of Applications
SPDT-NO
![](_media/img/small/diapositiva5-2.png)
Double Function - Normally Open: Emptying
SPDT-NC
![](_media/img/small/diapositiva6-2-2-2-2.png)

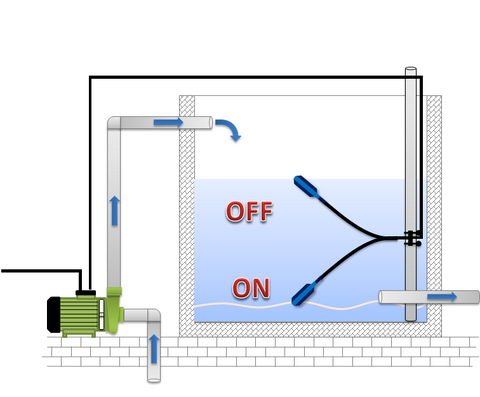

Double Function - Normally Closed: Filling
Technical Datas
Casing: Polypropylene
Grommet: EPDM
International Protection: IP68
MODEL | CABLE | LENGHT (m) | AMP - VOLT - T°C | DEPTH | ACTIVATION ANGLE | NOTE |
---|---|---|---|---|---|---|
SUPERTEC-DRINK | ACS 3X1 SPDT - Ø 8,8mm | 5 / 10 | 10(8)A 250Vac T40 | max.20m (65,6ft) | 90°±20° | for pumps till 1,5HP |
Accessories
Cable holders
(* May not be included)
Shell Counterweight 230g*
It allows the float switch to work always with the same cable length even in turbolent waters avoiding damages to the cable.
![](_media/img/small/shell.png)
