Olympic
Reduced dimensions, the most economic solution for water pumps and plumbing systems automation.
Applications:
DOMESTIC
RAINING
GARAGEDownload:
Principle of Operation

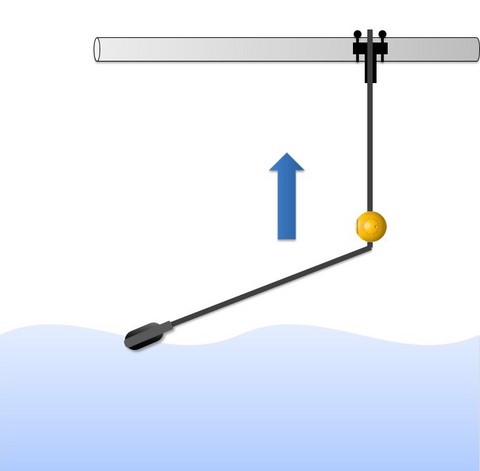

The tank fills

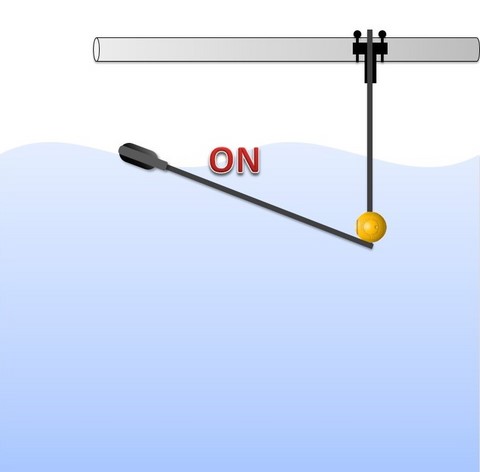

High level starts the pump

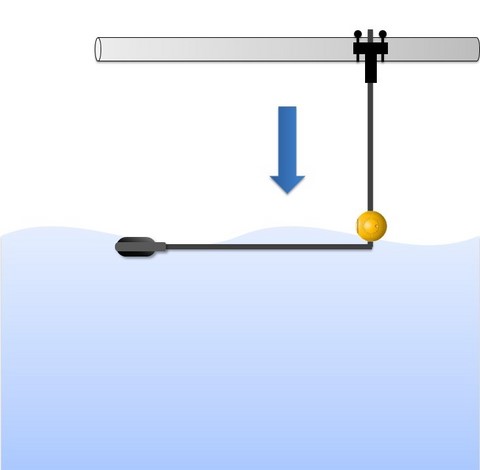

The tank drains

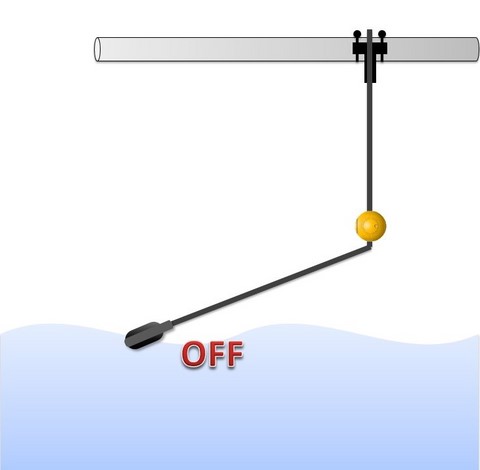

Low level stops the pump
Examples of Applications
SPST-NO / SPDT-NO
Single Function - Normally Open: Emptying
/ Double Function - Normally Open: Emptying
/ Double Function - Normally Open: Emptying
SPDT-NC
Double Function - Normally Closed: Filling
Technical Datas
Casing: Polypropylene
International Protection: IP68
MODEL | NEOPRENE CABLE | LENGHT (m) | AMP - VOLT - T°C | DEPTH | ACTIVATION ANGLE | NOTE |
|---|---|---|---|---|---|---|
OLYMPIC 01 | H07 RNF 3G1 SPST-NO - Ø 8,8mm | 0,52 / 3 / 5 / 10 / 20 | 10(8)A 250Vac T50 0,1A 12/24V T60 | max.20m (65,6ft) | 90°±20° | for pumps till 1,5HP |
OLYMPIC 02 | H05 RNF 3X1 SPDT - Ø 7,5mm | 0,52 / 3 / 5 / 10 / 20 | 10(8)A 250Vac T50 0,1A 12/24V T60 | max.20m (65,6ft) | 90°±20° | for pumps till 1,5HP |
Accessories
Cable holders
(* May not be included)

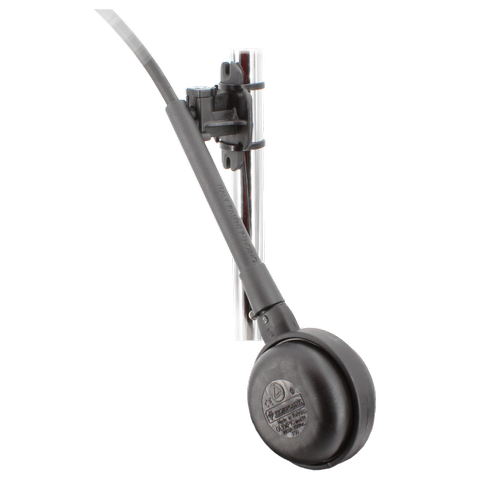

bamboo
Tt is ideal for applications in turbulent waters as it prevents the entanglement of the cable, so the float switch can work properly
Shell Counterweight 230g*
It allows the float switch to work always with the same cable length even in turbolent waters avoiding damages to the cable.
Schuko Piggyback Plug*
The schuko piggyback plug provided with the float switch allows to connect a pump without a switch directly to an electrical socket as to controll the start and stop function.
