Whale
New completely redesigned line of plastic filters totally manufactured with no-toxic material according to the ACS legislation. Intended for permanent use in drinking water.
Built-in anti water hammer to prevent possible over-pressures that can damage the filters. Thanks to the new joint , it is possible to connect several filters in sequence.
Supplied with water collection bag, filters are delivered already assembled, key tool included.
Patented and European Registered Design
Download:
Pieces: head, nut and glass
Head and Nut: PolypropyleneO-Ring: EPDM
pH: 7
MODEL | GLASS | CONNECTIONS | TEMPERATURE | PRESSURE | FLOW RATE (empty filter) |
|---|---|---|---|---|---|
WHALE 5" | Transparent San 5" | Brass 3/4" or 1" Plastic 1" | Max. 45°C (113°F) | Max. 11 bar (160 psi) | Ø1” - 3500l/h ؾ” - 2300l/h |
WHALE 10" | Transparent PET 10" | Brass 3/4" or 1" Plastic 1" | Max. 45°C (113°F) | Max. 11 bar (160 psi) | Ø1” - 3500l/h ؾ” - 2300l/h |
Example of application
Municipal plant
The filter is installed before the faucet to clear the water, and after the pressure reducing valve to avoid waterhammer from the outside damage the filter.
with pump
The filter is installed before the pump to preserve the impeller inside the pump.
Available compositions
(Heads of the Double and Triple versions can not be disassembled)

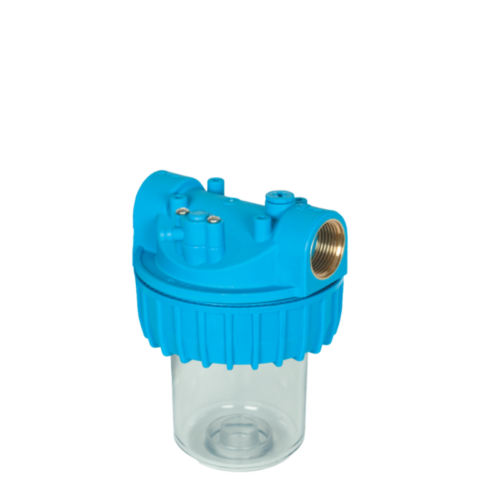

Whale 5" Single

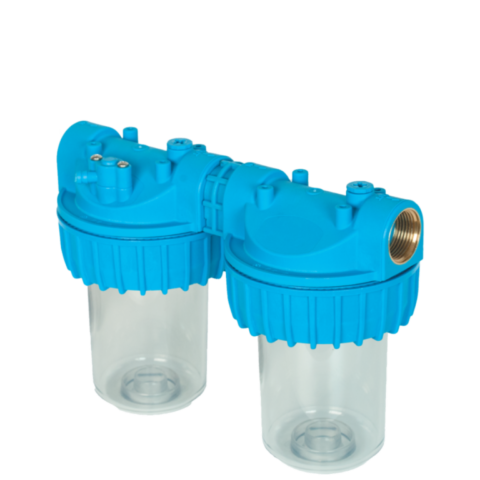

Whale 5" Double

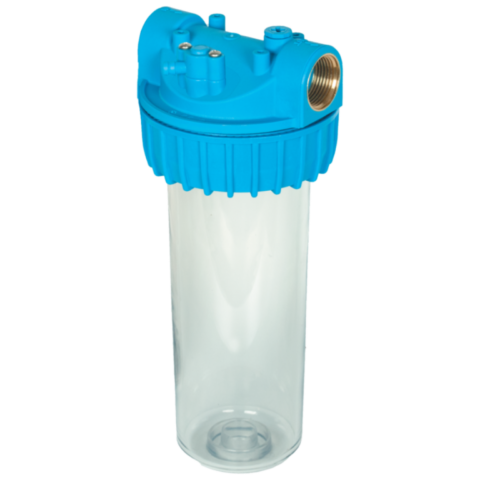

Whale 10" Single

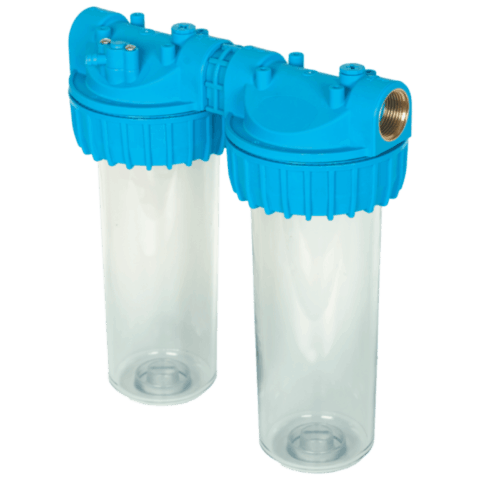

Whale 10" Double

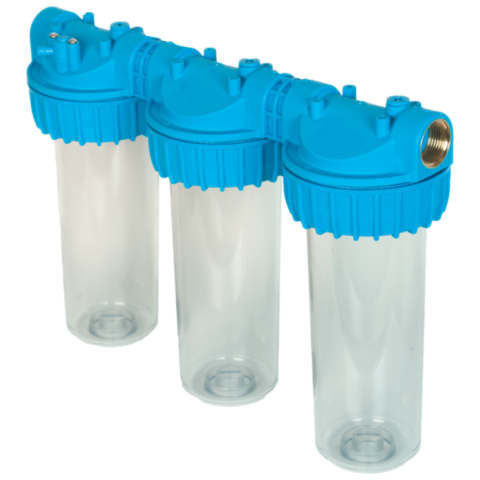

Whale 10" Triple
Accesories
(* May not be included)
Filter Tool
Key to screw or loosen the filter casing without effort
Wall Support
Support to hang the filter on the wall
O-Ring
O-Ring for filter 88,27X5,34 EPDM
Teflon
Teflon tape rolls 12mm x 12M x 0,075mm to seal the fittings perfectly in order to avoid water leakages
