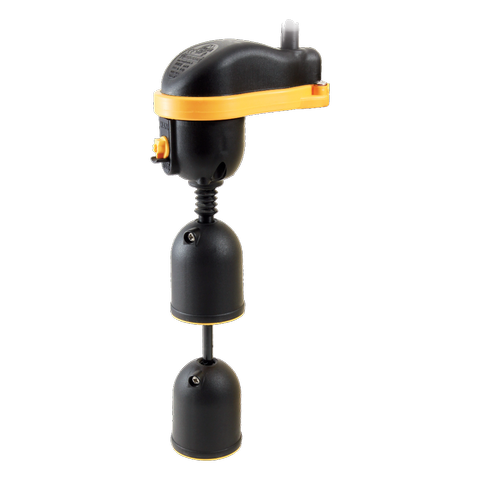

Mouse

Vertical level regulator suitable for narrow spaces where regular floats do not have enough room to move. At user’s will the floating bodies can be moved along the shaft to regulate the minimum and maximum level. Shaft is available in different lengths.
Mouse requires periodic check-ups of its parts.
 PATENTED PRODUCT

Applications:
CLEAN WATER
 RAIN WATER
INDUSTRIAL WATER
 WATER CONTAINING CHEMICAL SUBSTANCES

Download:



Principle of Operation

Based on the magnet and the weight

The tank fills up. The water reaches the maximum level and the whole floating body raises

The max level turns the pump ON and the tank drains

The water reaches the minimum level and the weight of the floating body disengages the magnet

The min. level turns OFF the pump

Auto/Manual Switch

It's possible to set the operation of the float in automatic (ON / OFF) or manual (always ON) via the manual switch on the head of the float

Adjusting the Start and Stop Level

The float is a level controller that allows the user to bring the water levels at certain heights with a minimum and maximum range. It's possible increasing or decreasing the distance between the floating units of maximum and minimum level unscrewing the screws

Shafts

available in different lengths

Examples of Applications

SPST-NO / SPDT-NO

Single Function - Normally Open: Emptying
/ Double Function - Normally Open: Emptying

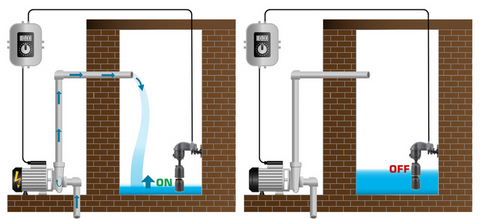

SPDT-NC

Double Function - Normally Closed: Filling

Available Electrical connectons

Standard Applications
Solutions for pump manufacturers

Technical Datas

Casing: Polypropylene
Grommet: EPDM
Accordion Hose: EPDM
Shaft: PET-> 200mm (standard) / AISI 316-> 250/500/750mm / Polyester-> 10m
Screws: A2

International Protection: IP68
MODEL
NEOPRENE CABLE
LENGHT (m)
AMP - VOLT - T°C
DEPTH
NOTE
MOUSE 05
(standard)
H07 RNF 4G1 SPDT  - Ø 8,8mm
0,52 / 2 / 5 / 10
10(8)A 250Vac T50
0,1A 12/24V T60
max.10m (32,8ft)
for pumps till 1,5HP
MOUSE 04
H05 RNF 3X1 SPDT - Ø 7,4mm
2 / 5 / 10
10(8)A 250Vac T50
0,1A 12/24V T60
max.10m (32,8ft)
for pumps till 1,5HP
MOUSE 02
H07 RNF 3G1 SPST-NO - Ø 8,8mm
0,52 / 2 / 5 / 10
10(10)A 250Vac T50
0,1A 12/24V T60
max.10m (32,8ft)
for pumps till 2HP
MOUSE 01
H07 RNF 3G1 SPST-NO - Ø 8,8mm
0,52
10(8)A 250Vac T50
0,1A 12/24V T60
max.10m (32,8ft)
for pumps till 1,5HP

Accessories

Brackets and Supports

(* May not be included)

Polipropylene Bracket

tube or wall fixing

Stainless steel bracket *

aisi 304

Supports

tank fixing

Flanged*

2"

Threaded*

2" Gas

Schuko Piggyback Plug*

The schuko piggyback plug provided with the float switch allows to connect a pump without a switch directly to an electrical socket as to controll the start  and stop function.
